Parsun F50 EFI, F60 EFI, F40(Pro) Fernschaltung
Ersatzteile für die Schaltbox Parsun F40FWL-T-PRO F50FEL-T-EFI • F60FEL-T-EFI

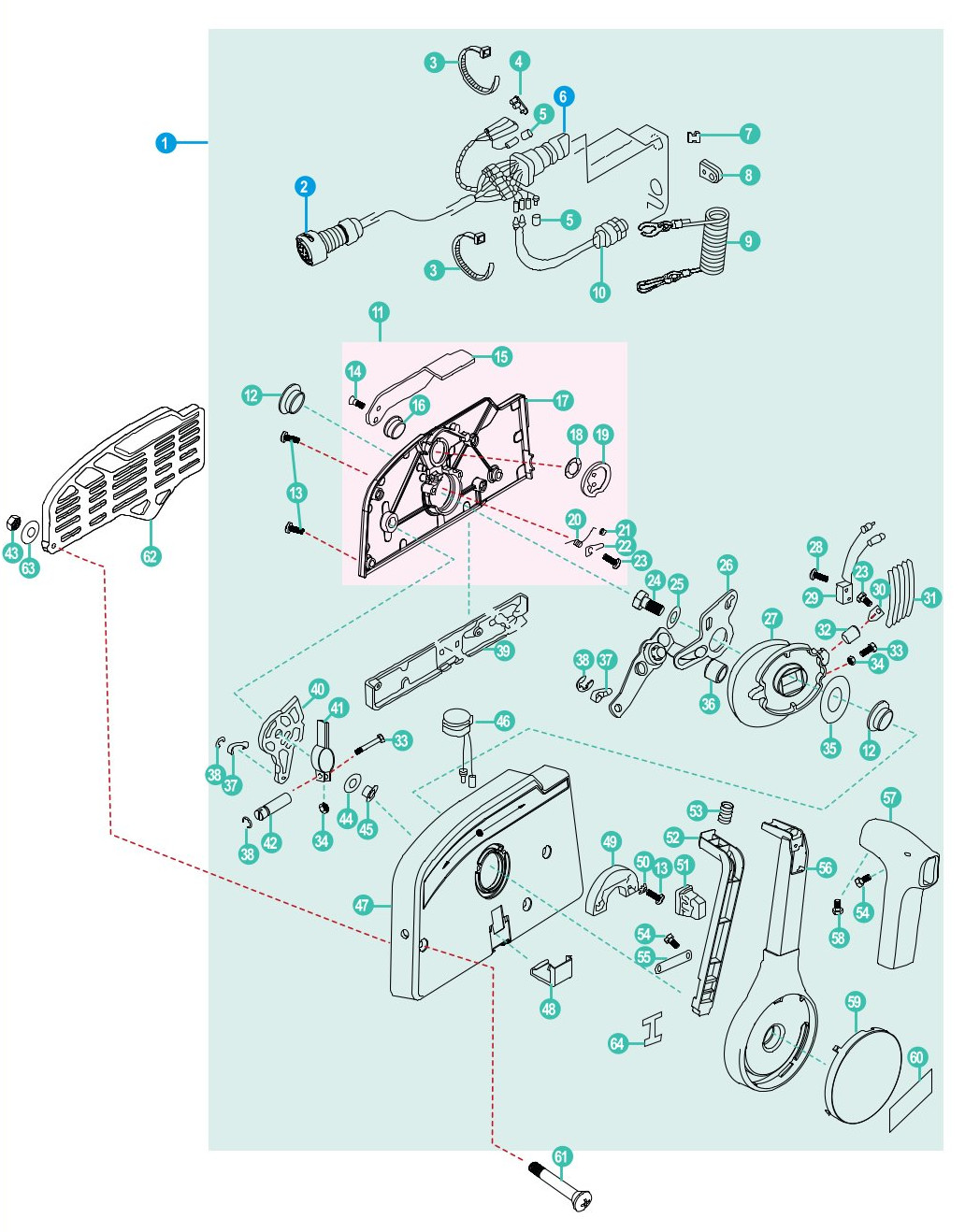

Explosionszeichnung
Teileliste
| Pos. | Artikel | Preis | Bestellen |
|---|---|---|---|
| 1 | Schaltbox – PAF40-13000000EIArt.-Nr.: RM-PAF40-13000000EIEFI Modelle | 716,11 € | |
| 2 | CONTROL CABLEArt.-Nr.: RM-PAF40-08010100EIEFI Modelle | 126,32 € | |
| 3 | CLAMP 60X2.5Art.-Nr.: RM-PAHT2.5X60 | 0,51 € | |
| 4 | INSULATED PLUG AArt.-Nr.: RM-PAF15-13000202W | 1,43 € | |
| 5 | INSULATED PLUG BArt.-Nr.: RM-PAF15-13000203W | 1,55 € | |
| 6 | STARTING SWICH ASSYArt.-Nr.: RM-PAF40-13000200EIEFI Modelle | 31,06 € | |
| 7 | BLOCK RUBBERArt.-Nr.: RM-PAF15-11000001W | 2,28 € | |
| 8 | JACKET CABLEArt.-Nr.: RM-PAF15-13000014W | 1,34 € | |
| 9 | Notstopp für Parsun F2.6 / Yamaha – PAF4-01090401Art.-Nr.: RM-PAF4-01090401 | 9,33 € | |
| 10 | ENGINE STOP SWICH ASSYArt.-Nr.: RM-PAF15-13020400W | 8,32 € | |
| 11 | COVER ASS‘Y CONTROL BOXArt.-Nr.: RM-PAF15-13020000W | 140,32 € | |
| 12 | BUSH CANArt.-Nr.: RM-PAF15-13000005W | 1,71 € | |
| 13 | SCREW PAN HEAD M5X18Art.-Nr.: RM-PAGB/T819.2-M5X18 | 0,26 € | |
| 14 | SCREW PAN HEAD M5X12Art.-Nr.: RM-PAGB/T819.2-M5X12 | 0,20 € | |
| 15 | Throttle Handle Inching – PAF15-13020007WArt.-Nr.: RM-PAF15-13020007W | 17,92 € | |
| 16 | BUSH HANDLEArt.-Nr.: RM-PAF15-13020006W | 1,27 € | |
| 17 | COVER CONTROL BOXArt.-Nr.: RM-PAF15-13020001W | 18,93 € | |
| 18 | WASHER “B” WAVEArt.-Nr.: RM-PAF15-13020005W | 1,19 € | |
| 19 | LOCKED DISK ASS‘YArt.-Nr.: RM-PAF15-13020100W | 5,33 € | |
| 20 | TORSION SPRINGArt.-Nr.: RM-PAF15-13020002W | 1,14 € | |
| 21 | EACH LOCKED PULLEYArt.-Nr.: RM-PAF15-13020003W | 1,34 € | |
| 22 | PLATE PULLEY SPRINGArt.-Nr.: RM-PAF15-13020004W | 0,62 € | |
| 23 | Screw, Pan Head M4X6 – PAGB/T818-M4X6Art.-Nr.: RM-PAGB/T818-M4X6 | 0,31 € | |
| 24 | Bolt M8X30 – PAGB/T5783-M8X30Art.-Nr.: RM-PAGB/T5783-M8X30 | 1,89 € | |
| 25 | Scheibe 8 mm – PAGB/T97.1-8Art.-Nr.: RM-PAGB/T97.1-8 | 0,39 € | Nicht vorrätig |
| 26 | Machine, Control Accelerograph – PAT20-13000500WArt.-Nr.: RM-PAT20-13000500W | 77,42 € | Nicht vorrätig |
| 27 | CAM MECHANISMArt.-Nr.: RM-PAF15-13000002W | 45,95 € | |
| 28 | SCREW M3X14Art.-Nr.: RM-PAGB/T818-M3X14 | 0,26 € | |
| 29 | INCHING SWITCHArt.-Nr.: RM-PAF15-13000800W | 8,65 € | Nicht vorrätig |
| 30 | PLATEArt.-Nr.: RM-PAF15-13000003W | 1,08 € | |
| 31 | SHIFT SPRING PLATE “B”Art.-Nr.: RM-PAF15-13000001W | 1,14 € | |
| 32 | PULLEYArt.-Nr.: RM-PAF15-13000004W | 1,63 € | |
| 33 | BOLT M5X25Art.-Nr.: RM-PAGB/T5783-M5X25 | 0,31 € | |
| 34 | NUT,HEXAGON M5Art.-Nr.: RM-PAGB/T6170-M5 | 0,20 € | |
| 35 | WEARABLE PLATE CAM MACHANISMArt.-Nr.: RM-PAF15-13000008W | 3,26 € | |
| 36 | WASHERArt.-Nr.: RM-PAF15-13000007W | 1,99 € | |
| 37 | Control Cable Tie IN “B” – PAF25-07000007WArt.-Nr.: RM-PAF25-07000007W | 3,88 € | |
| 38 | Sicherungsring 6 – PAGB/T896-6Art.-Nr.: RM-PAGB/T896-6 | 0,51 € | |
| 39 | SMALL COVER CONTROL BOXArt.-Nr.: RM-PAF15-13000013W | 12,85 € | |
| 40 | SHIFT SWING LINKArt.-Nr.: RM-PAF15-13000700W | 12,38 € | |
| 41 | ADJUSTER FASTNESS ASS’YArt.-Nr.: RM-PAF15-13000601W | 11,86 € | |
| 42 | ADJUSTER PINArt.-Nr.: RM-PAF15-13000602W | 3,34 € | |
| 43 | Nut – REC95380-06700Art.-Nr.: RM-REC95380-06700 | 0,68 € | |
| 44 | WEARABLE PLATEArt.-Nr.: RM-PAF15-13000006W | 0,93 € | |
| 45 | BUSH SHIFT SWING LINKArt.-Nr.: RM-PAF15-13000011W | 1,27 € | |
| 46 | Buzzer Ass‘Y – PAF15-13000300WArt.-Nr.: RM-PAF15-13000300W | 21,50 € | |
| 47 | BRACKET CONTROL BOXArt.-Nr.: RM-PAF15-13000012W | 43,28 € | |
| 48 | COVER WATERPROOFArt.-Nr.: RM-PAF15-13000015W | 0,90 € | |
| 49 | Block Control Handle – PAF15-13010010WArt.-Nr.: RM-PAF15-13010010W | 5,51 € | |
| 50 | WASHER LOCKED 5Art.-Nr.: RM-PAGB/T956.1-5 | 0,15 € | |
| 51 | Switch Assy, Tilt – PAE4-10040100WArt.-Nr.: RM-PAE4-10040100W | 25,03 € | |
| 52 | PART ORIENTATION CONTROLArt.-Nr.: RM-PAF15-13010004W | 3,78 € | |
| 53 | SPRING COMPRESSIONArt.-Nr.: RM-PAF15-13010005W | 0,80 € | |
| 54 | Bolt – PAGB/T818-M4X10Art.-Nr.: RM-PAGB/T818-M4X10 | 0,49 € | |
| 55 | PLATE ORIENTATION PARTArt.-Nr.: RM-PAF15-13010008W | 1,34 € | |
| 56 | CONTROL HANDLEArt.-Nr.: RM-PAF15-13010001W | 14,40 € | |
| 57 | CONTROL HANDLEBARArt.-Nr.: RM-PAF15-13010002W | 8,96 € | |
| 58 | SCREW PAN HEAD ST4.8X12Art.-Nr.: RM-PAGB/T84.5-ST4.8X12 | 0,24 € | |
| 59 | COVER CONTROL HANDLEArt.-Nr.: RM-PAF15-13010009W | 2,88 € | |
| 60 | MARK 16 Fernbedienung Decal AufkleberArt.-Nr.: RM-PAF15-12000016W | 0,24 € | |
| 61 | Screw M6X90 – PAGB/T820-M6X90Art.-Nr.: RM-PAGB/T820-M6X90 | 2,15 € | |
| 62 | Plate Control Box – PAF15-11000002WArt.-Nr.: RM-PAF15-11000002W | 35,62 € | |
| 63 | Scheibe Gross 6 für Yamaha – PAGB/T5287-6Art.-Nr.: RM-PAGB/T5287-6 | 1,27 € | |
| 64 | CHAFING PLATE, WIREArt.-Nr.: RM-PAE4-07020015W | 1,96 € |
