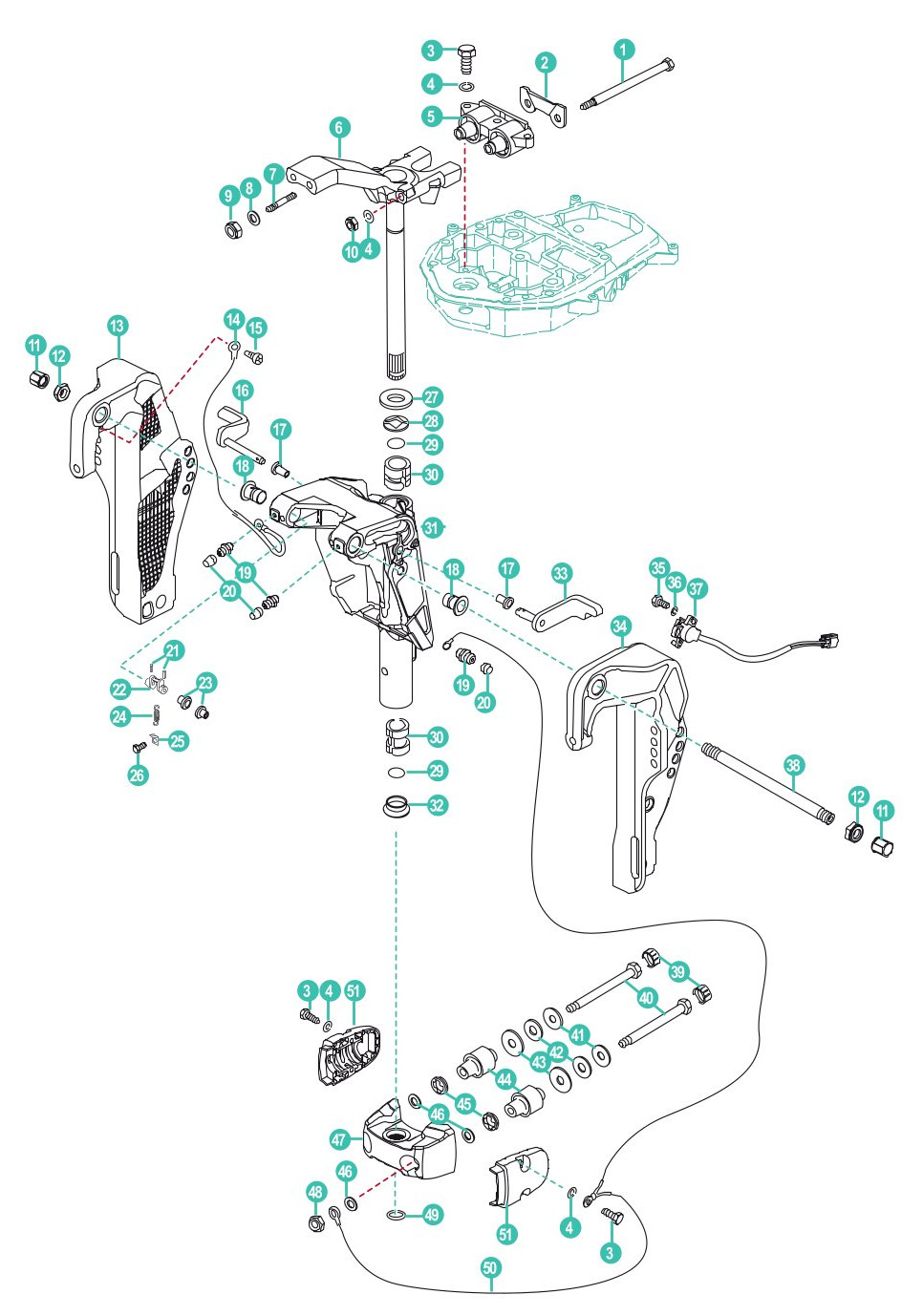

Parsun F50EFI,F60EFI,F40Pro Bracket

F40FWL-T-PRO
F50FEL-T-EFI • F60FEL-T-EFI

Nr.	Beschreibung
1	LONG BOLT 12,08 €
2	PLATE, ABSORBER 4,99 €
3	BOLT M8X30 1,17 €
4	Scheibe 8mm 0,31 €
5	SHOCK ABSORBER ASSY, DOUBLE HOLE 25,44 €
6	BRACKET, ASSY 323,48 €
7	BOLT M10x1.25x28 3,96 €
8	WASHER 10 0,25 €
9	Anode 5,97 €
10	LOCK NUT M8x1.25 2,34 €
11	NUT, PLASTIC 2,44 €
12	NUT, SELF-LOCKING 6,18 €
13	BRACKET, CLAMP(RIGHT) 228,30 €
14	WIRE, LEAD A 4,05 €
15	BOLT M6X10 0,36 €
16	SUPPORTING ASSY B 16,31 €
17	BUSH, NYLON 0,71 €
18	BUSH, NYLON 2,64 €
19	OIL CUP M6 3,08 €
20	CAP,GREASE NIPPLE 0,61 €
21	PIN, SPRING 0,18 €
22	BAR ASSY, SUPPORT BRACKET 2,55 €
23	BUSH, NYLON 1,63 €
24	SPRING 0,56 €
25	PLATE 0,89 €
26	BOLT M6XIO 0,27 €
27	WASHER 3,45 €
28	BUSH 0,51 €
29	O-RING 0,84 €
30	BUSH 2,34 €
31	BRACKET 447,89 €
32	BUSH 1,32 €
33	SUPPORTING ASSY A 14,57 €
34	BRACKET, CLAMP(RIGHT) 228,30 €
35	BOLT M6X20 0,51 €
36	SCHEIBE 6 YAMAHA 0,07 €
37	RAISE SENSOR ASSY 110,77 €
38	DOUBLE-EDGED TUBE 22,71 €
39	COVER,NUT 0,89 €
40	SCREW, ABSORBER 10,67 €
41	WASHER A 2,34 €
42	WASHER,RUBBER 0,25 €
43	PLATE 1,37 €
44	ABSORBER ASSY(LEFT, RIGHT) 16,24 €
45	WHASER, RUBBER 1,07 €
46	WAHSER 1,50 €
47	ABSORBER BLOCK 48,94 €
48	NUT M12X1.25 0,89 €
49	CIRCLIP 2,17 €
50	TIGHTWIRE, EARTHING 4,14 €
51	COVER, ABSORBER 14,82 €
