Parsun F30, F40, F15Pro - BRACKET 1/2

F15EFI (PRO)
F30FWL-T • F40FWL-T

  1. Alle Hersteller

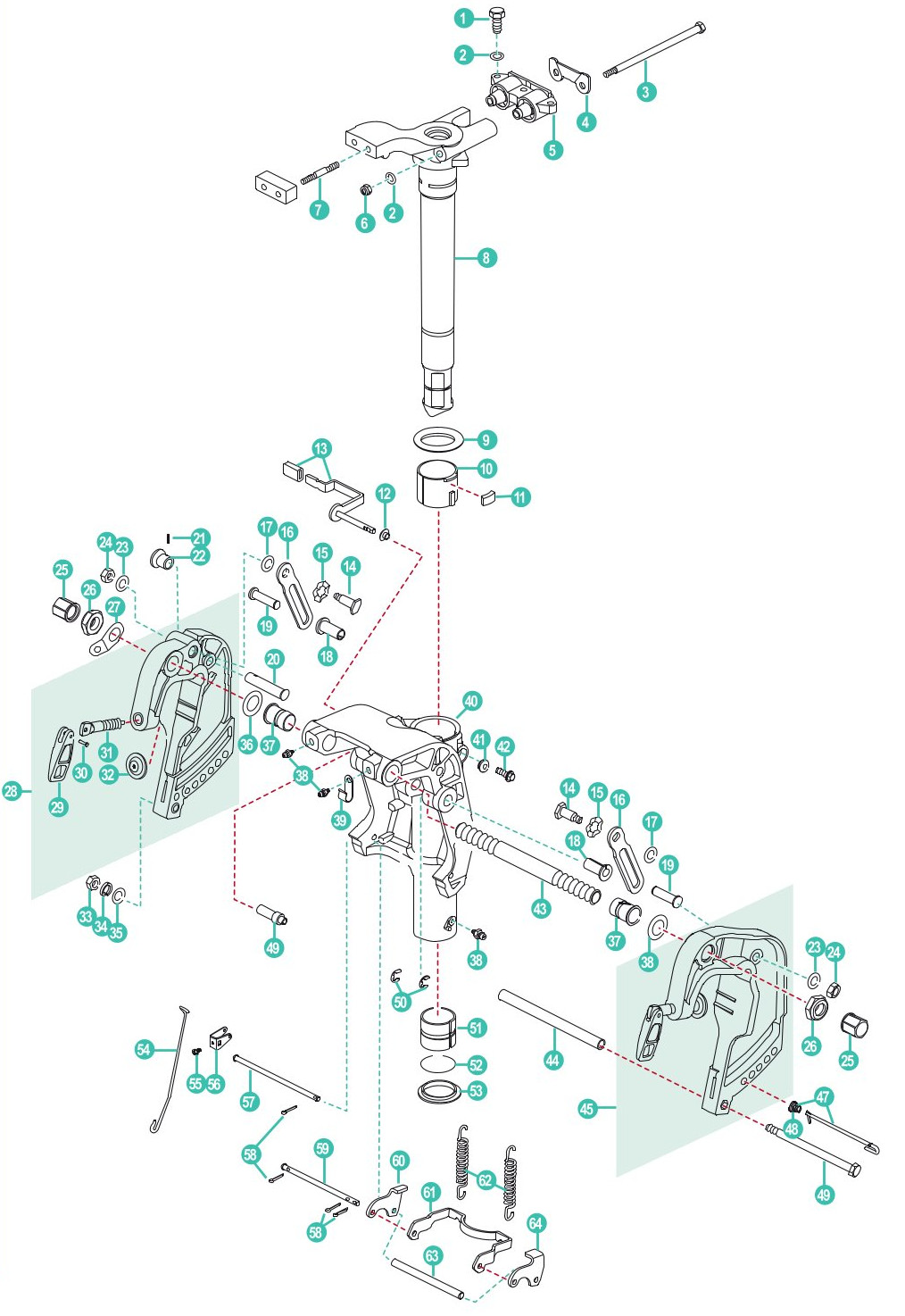

Parsun F30, F40, F15Pro - BRACKET 1/2
Nr. Beschreibung

1
BOLT M8X30
1,17 €

2
Scheibe 8mm
0,33 €

3
LONG BOLT
17,92 €

4
PLATE
4,76 €

5
DOUBLE HOLE SHOCK ABSORBER ASSY
23,47 €

6
LOCKNUT M8X1.25
1,40 €

7
BOLT, DOUBLE HEAD
3,96 €

8
BRACKET, STEERING (L)
244,59 €

9
WASHER, ABOVE
3,22 €

10
BUCHSE YAMAHA
3,31 €

11
PLATE, FRICTION
3,15 €

12
WASHER
1,37 €

13
TILT CLAMP HANDLE ASSY
16,51 €

14
SCREW, PROLATE HEXAGON
10,85 €

15
WASHER, WAVE
1,02 €

16
PLATE, TILT DETENT
3,49 €

17
WASHER NYLON
1,40 €

18
GASKET NYLON
1,86 €

19
PIN DETENT
7,07 €

20
LIMITATIVE POSITION SHAFT
3,71 €

21
PIN ?3X18
0,65 €

22
HANDLE
1,17 €

23
THICK WASHER 8
1,34 €

24
LOCKNUT M8
0,49 €

25
NUT, PLASTIC
2,37 €

26
NUT, SELF-LOCKING
6,18 €

27
PLATE, TWO HOLE
2,95 €

28
RIGHT BRACKET ASSY
208,04 €

29
TRANSOM BEFESTIGUNG YAMAHA
4,52 €

30
RIVET
0,83 €

31
SCREW, CLAMP
10,38 €

32
Klemmplate
2,75 €

33
Mutter M8
1,05 €

34
WASHER SPRING 8
0,13 €

35
Scheibe 8mm
0,33 €

36
WASHER
1,40 €

37
BUSH, NYLON
3,13 €

38
OIL CUP M6
2,93 €

39
CLAMP
1,63 €

40
BRACKET ROTARY
368,71 €

41
WASHER SEAL
0,96 €

42
HEXAGON BOLT M8X20
2,49 €

43
BOLT, CLAMP BRACKET
21,99 €

44
TUBE, BOLT
8,29 €

45
BRACKET LEFT ASSY
172,31 €

46
ROD ASSY, LIMIT ANGLE
17,03 €

47
CONICAL SPRING
13,52 €

48
LONG BOLT M8X255
7,85 €

49
BUSHING HANDLE
9,38 €

50
CIRCLIP 9
0,11 €

51
BUSH BELOW
3,02 €

52
O-RING
1,01 €

53
LOWER WASHER, ROTARY BRACKET
2,01 €

54
ROD BRACKET
4,12 €

55
SCREW M5X6
0,38 €

56
LEVER, ANGEL ORIENTATION
3,61 €

57
LONG SHAFT, BRACKET
5,72 €

58
PIN COTTER D2X12
0,07 €

59
SHORT SHAFT, OUTER BRACKET
6,05 €

60
BRACKET, ANGLE LOCKED B
5,88 €

61
ARM, TILT LOCK
16,83 €

62
SPRING, TENSION
2,69 €

63
TUBE, LONG SHAFT
2,24 €

64
PLATE, TILT LOCK A
7,04 €
​
